Success Story

Here are the success stories and cases with AVTECH total solutions.

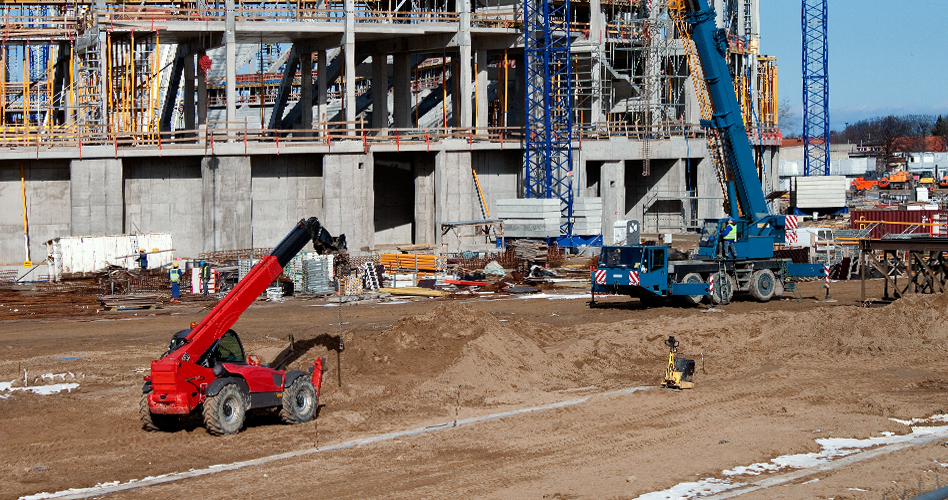

A Resort constuction Site in Bali



 Description

We arrange a total solution for a resort in Bali to monitor its construction site. The wide range of the site makes it difficult to supply electricity to the surveillance system though cables, so it is generated from solar panel and wind turbine.

For the full monitor, we set AVZ592 PTZ, which is able to spin 360 degree and AVM561 possessing 10x focus lens in the site; AVM521 equipped with WDR to take care the environment in which daylight varies a lot and Solidlight and AVH516 to storage videos from 2MP Real-Time recording. As to the system itself, the select are CMS Lite and AVX102 to remotely control the cameras. What’s more, there is App EagleEyes for mobile device and the software on IP camera that can snapshot and send the video back to the headquarter promptly instance

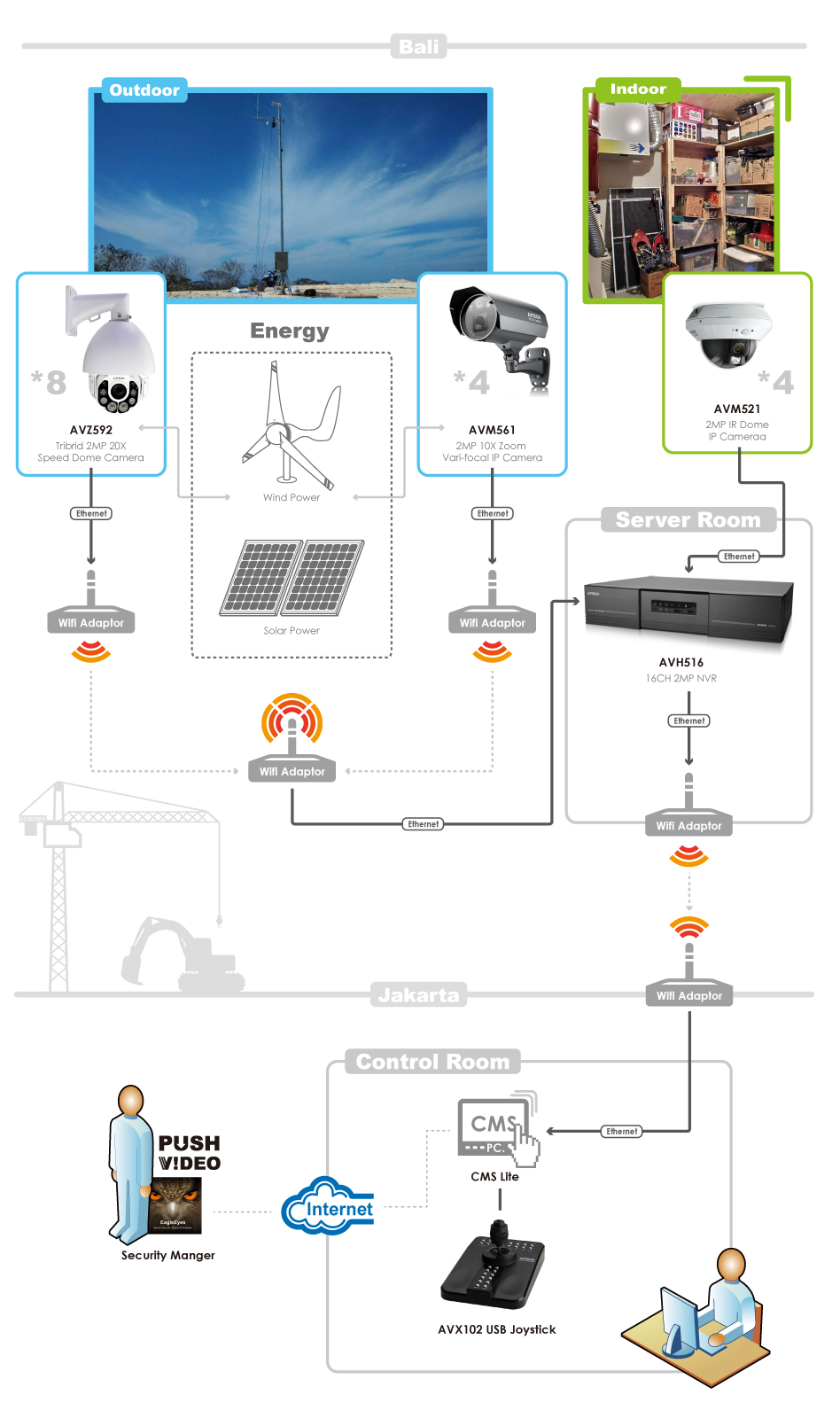

System diagram






EagleEyes
The EagleEyes software will fulfill all your remote surveillance desire through simply touch control on the phone screen. No matter where you are and what time it is, as long as your iPhone/ iPad/ Android phone is able to connect to the internet, you will be able to directly access to AVTECH’s products.





Solid Light
- Advanced Smart Light Control -
When an object is close to the camera during night time, Solid Light will sense it and automatically control the amount of light to avoid over-exposure.

Longer IR Effective Distancel
Solid Light is able to produce stronger lighting under IR Enhance mode than traditional IR LEDs. It enhances the overall picture brightness and reaches longer distance in a dark environment.

- Longer LED Lifetime -
Solid Light applies special circuit design to avoid overheat and uses a heat sink to dissipate heat from LED more quickly. LED lifetime can last for 3 years with Solid Light design.


Motorized Pan
With the built-in motorized lens, the camera can achieve a wide range of view, giving users more comprehensive control over the monitored site.

For details, please go to:
http://211.75.84.102/e_news/2013_speeddome/mail.html




WDR
Increase image recognizability in overexposure and dark areas.

For details, please go to:
http://211.75.84.102/e_news/WDR_IPCAM/WDR_ipcam_series.html



IR Speed Dome
To meet the IR PTZ needs for different surveillance scale, AVTECH provides users two total solutions. For the small-scaled case such as outdoor parking lots, there is an USB joystick going with the free recording software, 24CH CMS Lite. As for the large-scaled case such as shopping malls, there is an USB joystick going with 96CH CMS Professional, NVR /TVI DVR , and several IP or TVI IR speed dome cameras.



CMS Lite

CMS-Lite, the 24CH free software, is exclusively designed for monitoring multiple spots remotely. Common applications are chain stores and branch offices. Users can easily use functions such as live view, playback and backup with this software installed on a normal laptop. For advanced central control application, AVTECH provides you with 64CH CMS-Standard and 96CH CMS-Professional. What’s more, there are 16CH EagleEyesHD and 4CH EagleEyes for remote surveillance through tablets and mobile phones.

For details, please go to: http://211.75.84.102/e_news/2015_Catalogue_eNews
/Solution_Software_CMS.html


Related Products

Cameras
Model No.
Product image
Resolution
Lens
IR Effective Distance
Weather-/Vandal-proof
Download
AVM521A
1920x1080
1280x720
720x480
352x240
f3.8mm / F1.5 Default: up to 15 meters
v
AVM561
1920x1080
1280x720
720x480
352x240
Motorized f6.0 ~ 60 mm / F2.0 ~ 2.8 Default: up to 40 meters
IR Enhanced Mode: up to 60 meters
IP67
v
AVZ592
2MPf4.7 ~ 94mm / F1.6 (Wide) ~ 3.5(Tele) Default: Up to 200 meters
IR Turbo mode: More than 200 meters
IP66
v

Recorders
Model No.
Product

Recording
Throughput

HD
Storage

Channel
eSata
Recording Format
Video Output
Download
AVH516A
Up to 480 IPS @ 1920x1080, Up to 120Mbps Three 4TB hard disks16CH

v

Peripherals
Model No.
Product image
Product name
Product specification
Download
AVX102
USB JoystickThis USB joystick is used for AVTECH speed dome camera control on AVTECH DVR, NVR and PC (with CMS Lite installed).
v
